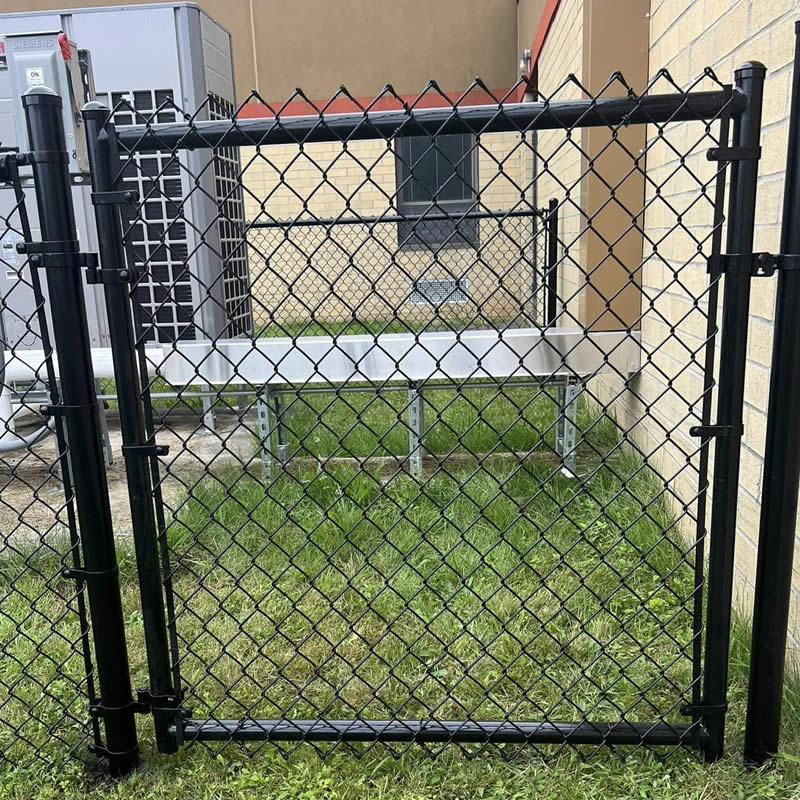

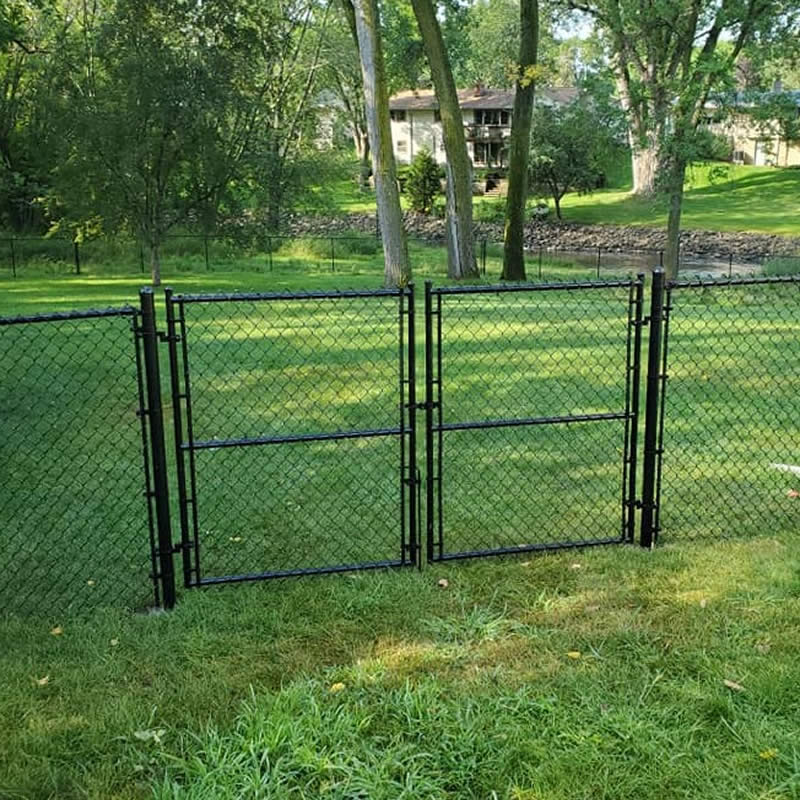

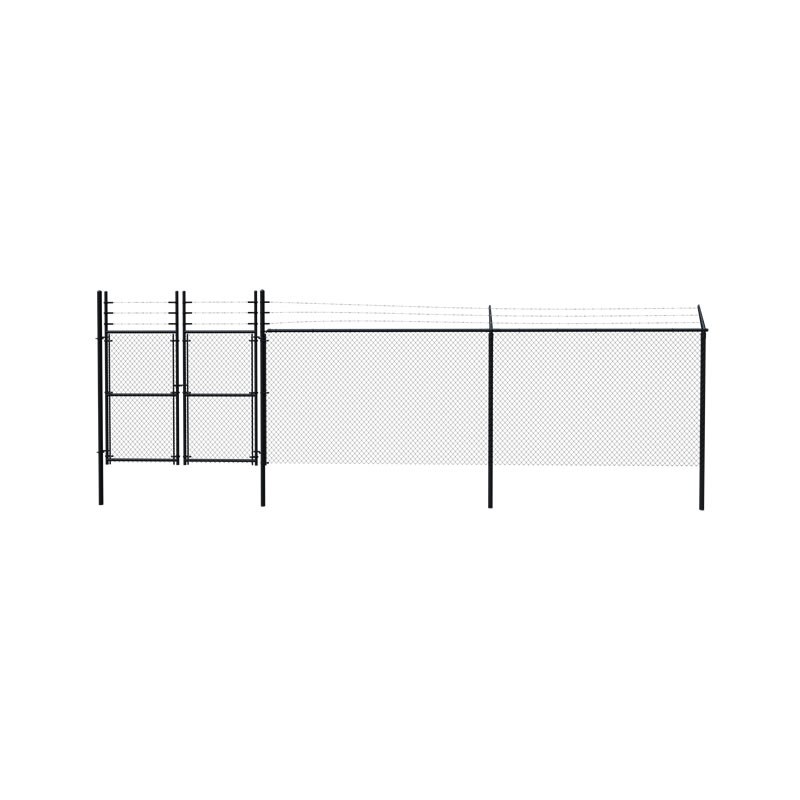

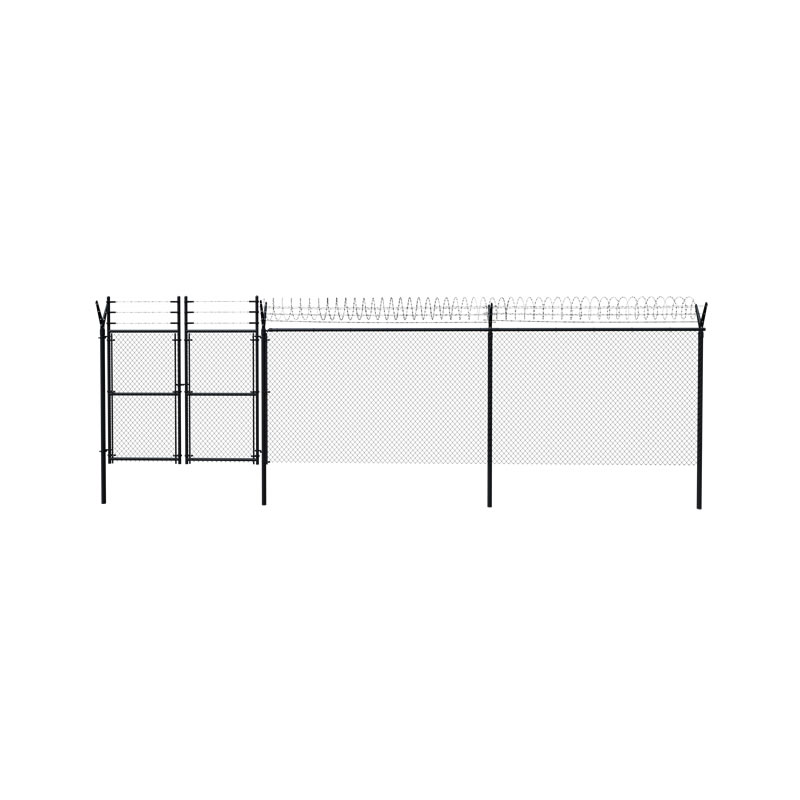

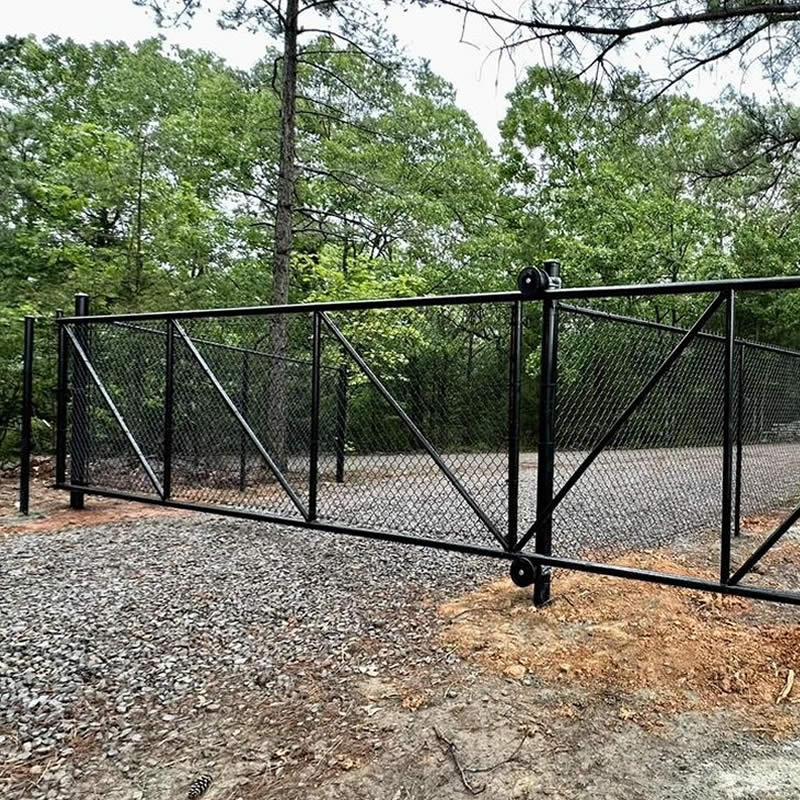

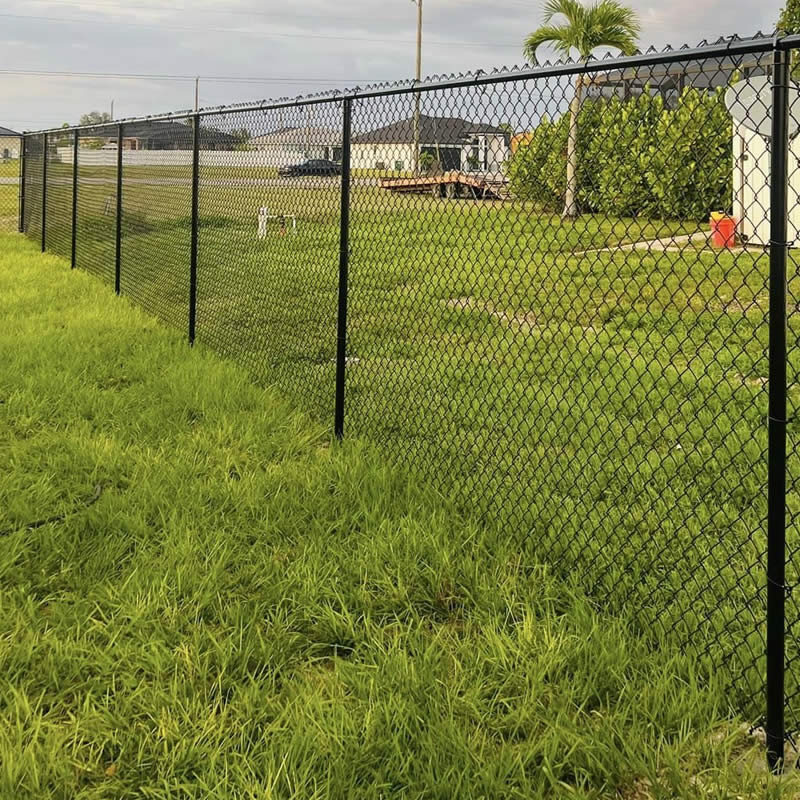

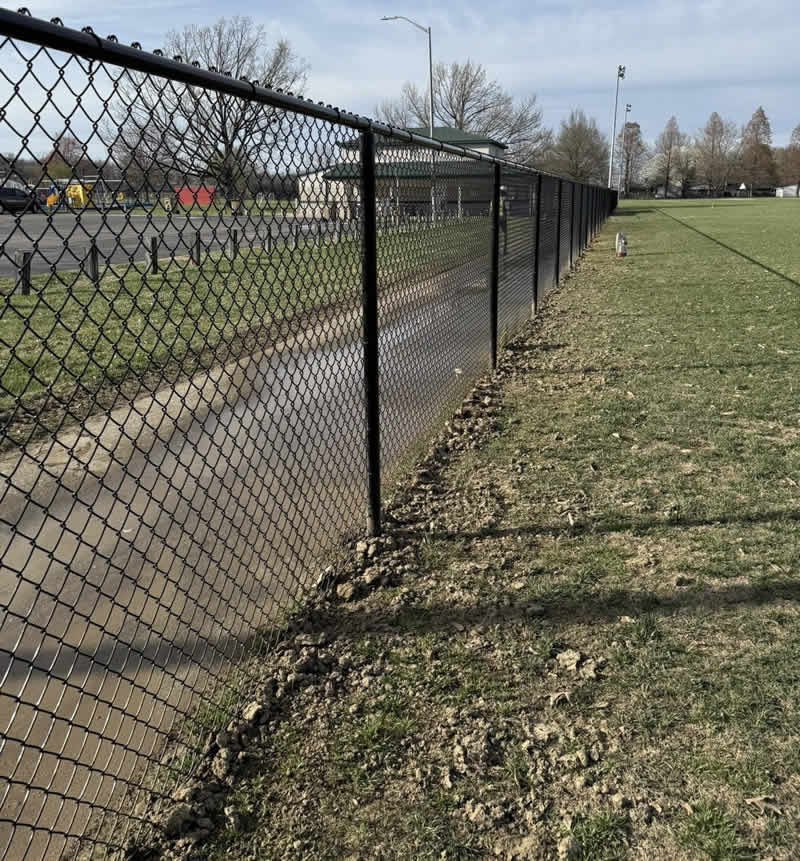

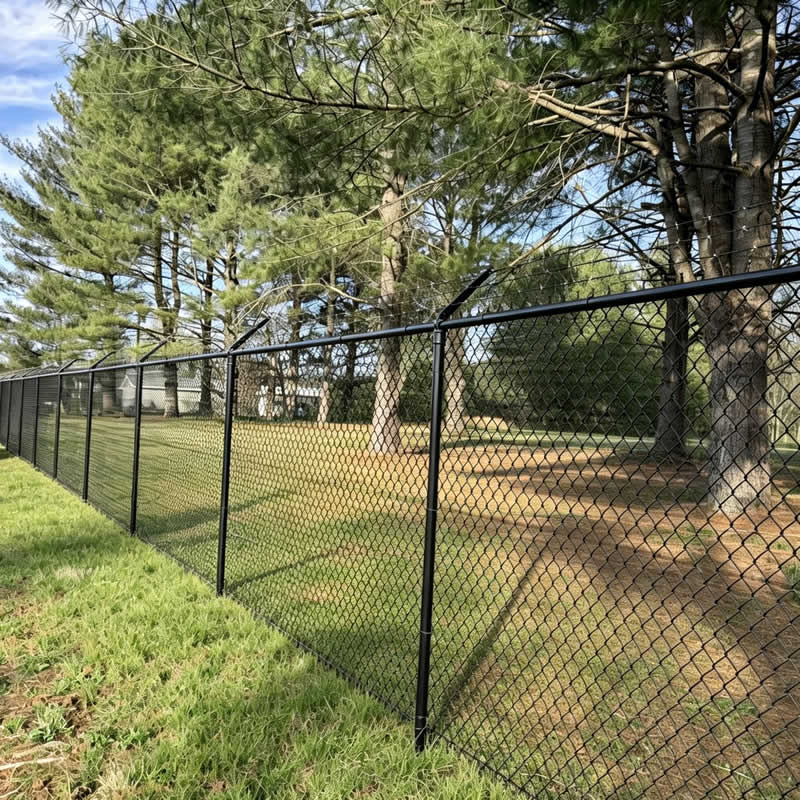

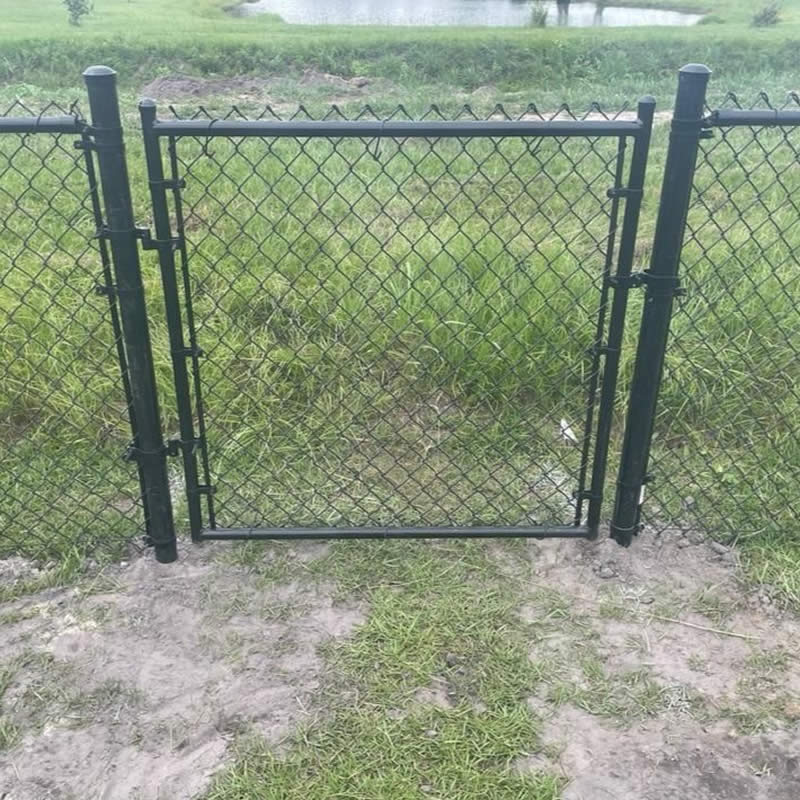

PVC chain link fence is mainly composed of three parts: chain link mesh rolls, posts and matching accessories. It is an economical, durable and widely used protective fencing product.
The chain link mesh is made of PVC-coated galvanized wire through the interweaving process. The inner core is high-quality galvanized iron wire, covered with an outer PVC plastic layer. It has excellent waterproof, sun-proof and anti-aging properties, effectively delays rusting, featuring a long service life outdoors and low maintenance costs. It is mainly available in green and black, which can blend naturally with the environments such as roads, sports courts and industrial parks.
The posts are generally made of formed galvanized steel pipes with powder coating treatment on the surface. They boast strong corrosion resistance, neat appearance, as well as great wind and pressure resistance, making the whole fence stable and durable.

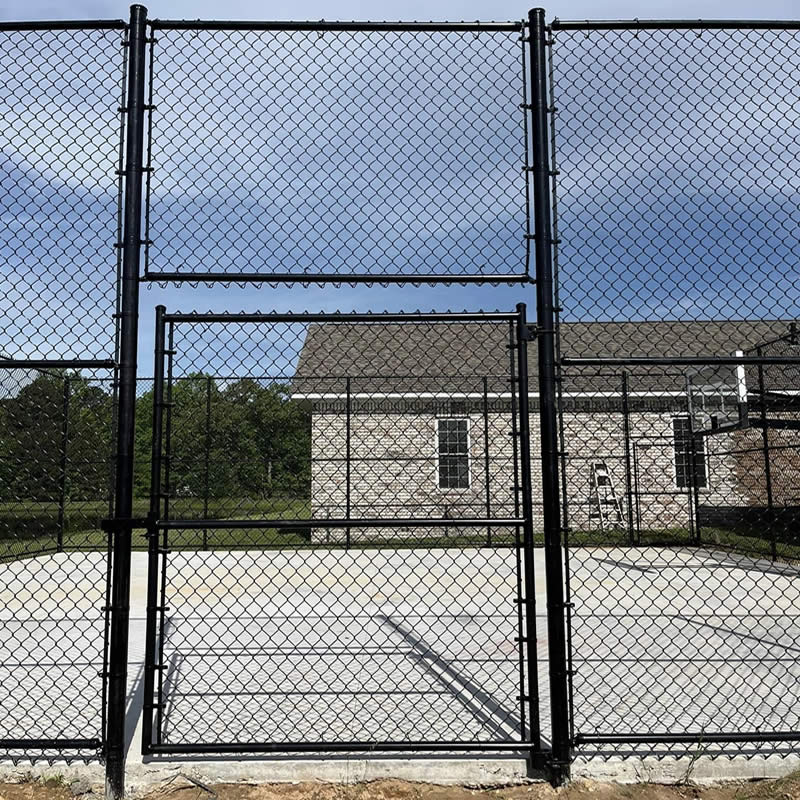

Featuring a simple structure and convenient installation, this fence is adaptable to complex terrains like slopes and curves. It is widely applied to sports court fencing, highway and railway isolation, residential quarters, factory areas, parks, breeding bases and other scenarios.
Height: 1.2m, 1.5m, 1.8m, 2m, 2.1m, 2.4m
Length: 10m, 15m, 20m, 25m, 30m
Round Post size: 48*1.5mm/2mm, 60*1.5mm/2mm
Mesh size: 30*30mm, 35*35mm, 50*50mm, 60*60mm, 70*70mm, 80*80mm
Standard ASTM F668
Table 1 - PVC Coated Chain Link Fabric Sizes
Mesh Size | Finish Wire Gage | Fabric Wire Height Inch (mm) | Selvage K-Knuckled, T-Twisted/Barbed | Roll Size | ||
inch | mm | ft | m | |||
2" | 50 | 6,8 | 36-144 (910-3,660) | KK, KT, TT | 50 | 15.24 |
1-3/4" | 44 | 6,8 | 36-144 (910-3,660) | KK, KT, TT | 50/25 | 15.24/7.62 |
1" | 25 | 8 | 36-144 (910-3,660) | KK, KT, TT | 50/25 | 15.24/7.62 |
5/8" | 16 | 11 | 36-72 (910-1830) | KK Only | 50/25 | 15.24/7.62 |
1/2" | 13 | 11 | 36-72 (910-1830) | KK Only | 50/25 | 15.24/7.62 |
3/8" | 10 | 11 | 36-72 (910-1830) | KK Only | 50/25 | 15.24/7.62 |
Fabric with other characteristics may be available. Please Contact us.
Sales Department with specific requests.
Table 2 - PVC-Coated Steel Wire Characteristics
Zinc Coated Core Wire Size | PVC Coated Finished Wire Size | PVC Coated Wire Allowable Variance | Core Wire Zinc Coating Weight min. | PVC Coating Thickness min. | Tensile Strength min. | |||||
Ga | Inch | mm | ga | inch | mm | oz/ft2 | g/m2 | inch | mm | MPa |
9 | 0.148 | 3.76 | 6 | ±0.02 | ±0.05 | 0.30 | 92 | 0.015 | 0.38 | 380 |
11 | 0.120 | 3.05 | 8 | ±0.02 | ±0.05 | 0.30 | 92 | to | to | 380 |
14 | 0.080 | 2.03 | 11 | ±0.02 | ±0.05 | 0.25 | 76 | 0.025 | 0.64 | 380 |
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
